Nein! Tools for Unity

Developer Tool Set - Enemy Controller

Nein! Tools is an advanced tool Kit for Unity Developers that allows you to setup and control enemies in your development project.  Purchase directly from us or on the Unity asset store.

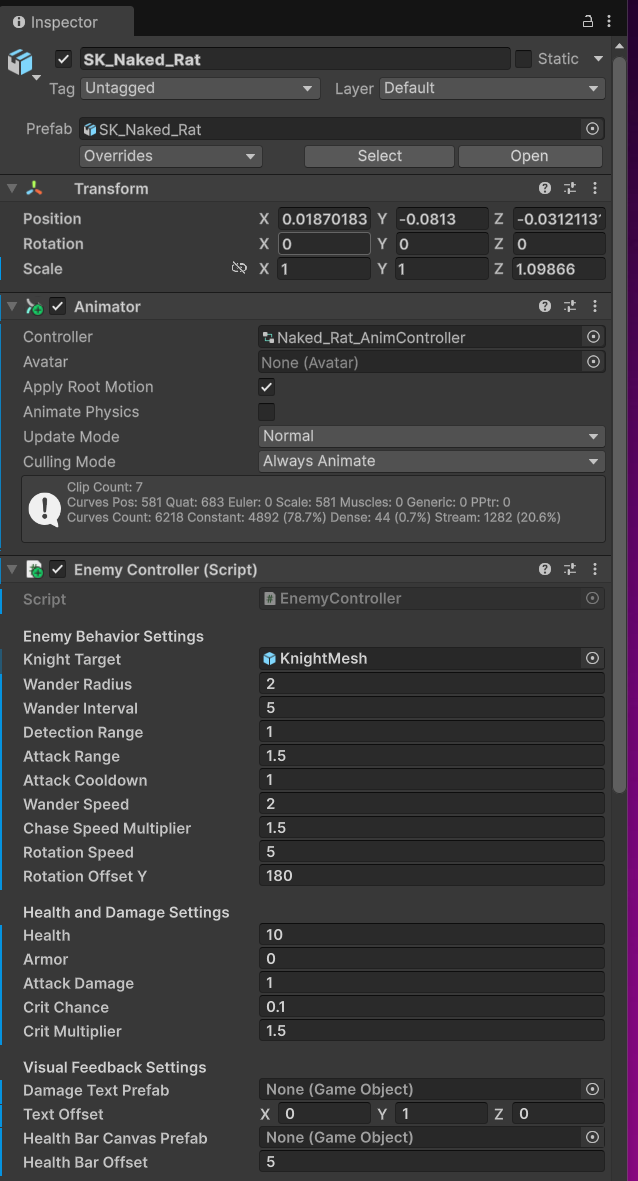

Main Features of EnemyController Script

Enemy Movement and AI Behavior:

Wandering: The enemy can wander within a specified radius (wanderRadius) around its spawn position. It chooses a new random target position every wanderInterval seconds and moves towards it at wanderSpeed.

Method: Wander() and ChooseNewWanderTarget().

Chasing: If the player (tagged as "KnightMesh") is within the detectionRange, the enemy will chase the player at an increased speed (wanderSpeed * chaseSpeedMultiplier).

Method: MoveTowardsTarget().

Attacking: If the player is within the attackRange and the attack cooldown (attackCooldown) has expired, the enemy will attack the player.

Method: Attack().

Health and Damage System:

Health Management: The enemy has a health value (health) and a maximum health (maxHealth), which can be set in the Inspector (default 10).

Taking Damage: The enemy can take damage via the TakeDamage method, which reduces its health based on the incoming damage minus armor mitigation (armor * 0.5f).

Method: TakeDamage(int damage).

Death: When health reaches 0, the enemy dies, playing a death animation (via the "Die" trigger) and destroying itself after 2 seconds.

Method: Die().

Health Bar Display:

The enemy has a health bar displayed above it, instantiated from a healthBarCanvasPrefab (a UI Canvas with a Slider).

The health bar’s position is offset by healthBarOffset (default 5 units above the enemy) and updates dynamically as the enemy takes damage.

The health bar is destroyed when the enemy dies.

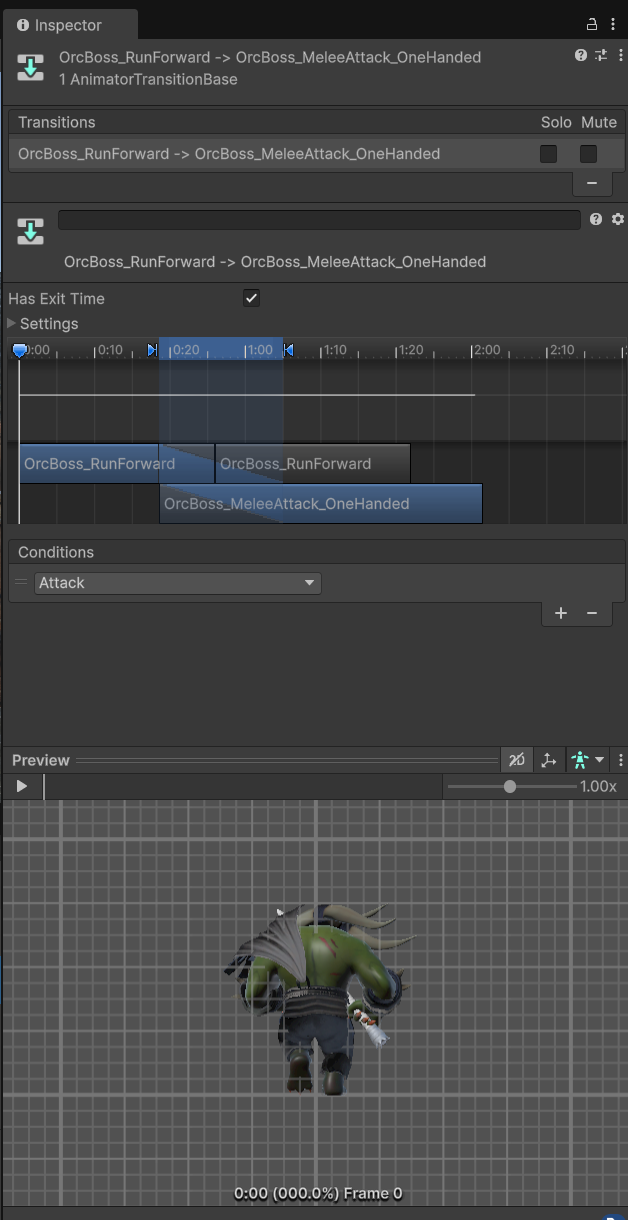

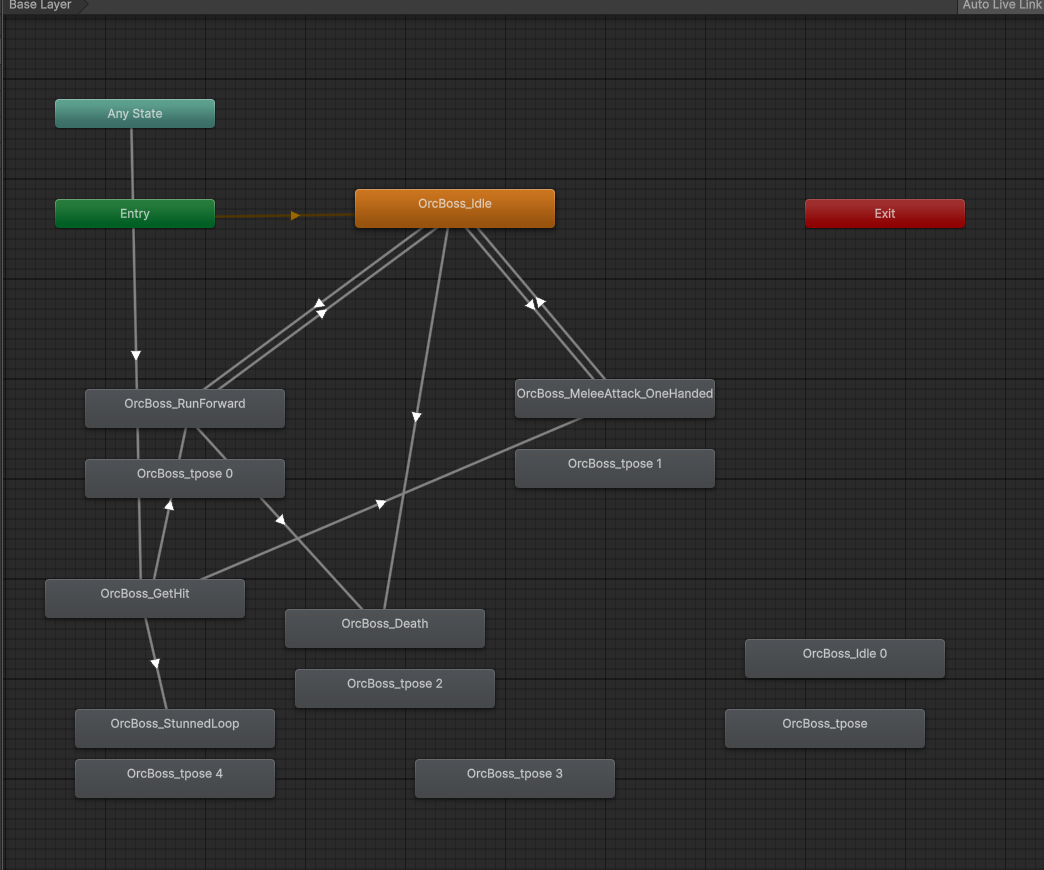

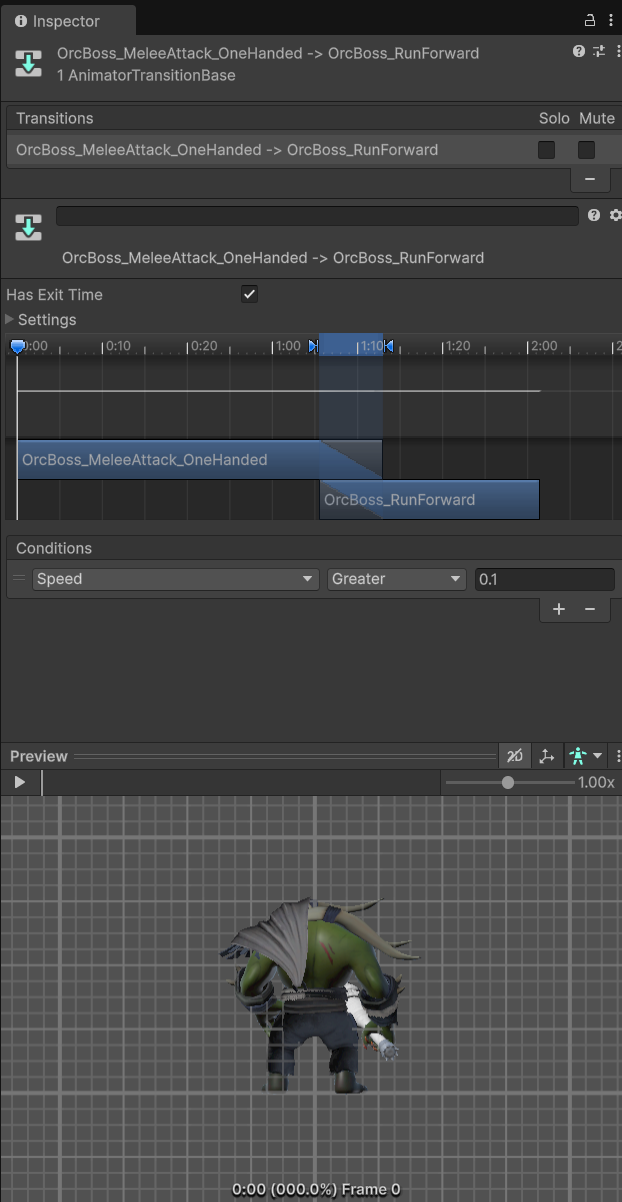

Animation Control:

The script interfaces with an Animator component to control enemy animations:

Idle/Walk: Controlled by a Speed parameter (set to 1 for walking, 0 for idle/attacking).

Attack: Triggered by an "Attack" trigger when the enemy attacks.

Hit: Triggered by a "Hit" trigger when the enemy takes damage.

Death: Triggered by a "Die" trigger when the enemy dies, with an IsDead boolean set to true.

Methods: Attack(), TakeDamage(), Die(), Wander(), MoveTowardsTarget().

Damage Text Display:

When the enemy takes damage, floating damage text is displayed above it, instantiated from a damageTextPrefab.

The text shows the final damage dealt (after armor mitigation) in red with a font size of 24.

The text position is offset by textOffset (default (0, 1, 0)).

Attack Mechanics:

The enemy can attack the player when in range, dealing attackDamage (default 1).

Attacks have a critical hit chance (critChance, default 0.1) and a critical hit multiplier (critMultiplier, default 1.5).

When attacking, the enemy triggers an attack animation and applies damage to the player via a KnightHealth component.

Damage text is displayed above the player when hit, with critical hits shown in yellow and larger font size (30 vs. 24).

Rotation and Facing:

The enemy rotates to face its target (either the wander target or the player) using Quaternion.Slerp with a rotationSpeed.

An optional rotationOffsetY can be applied to adjust the facing direction.

Debug and Testing Features:

The script includes extensive debug logs to track enemy behavior (e.g., distance to the player, state changes, animation states).

Pressing the T key applies 10 damage to the enemy for testing purposes (you can remove this after testing).

Summary of Key Functionality

AI Behavior: Wandering, chasing, and attacking the player based on proximity and cooldowns.

Health System: Tracks health, applies damage with armor mitigation, and handles death.

Health Bar: Displays a UI health bar above the enemy that updates with damage.

Animations: Controls idle, walk, attack, hit, and death animations via an Animator.

Damage Text: Shows floating damage text for both enemy and player damage.

Attack Mechanics: Includes critical hits and applies damage to the player.

Rotation: Smoothly rotates the enemy to face its target.
